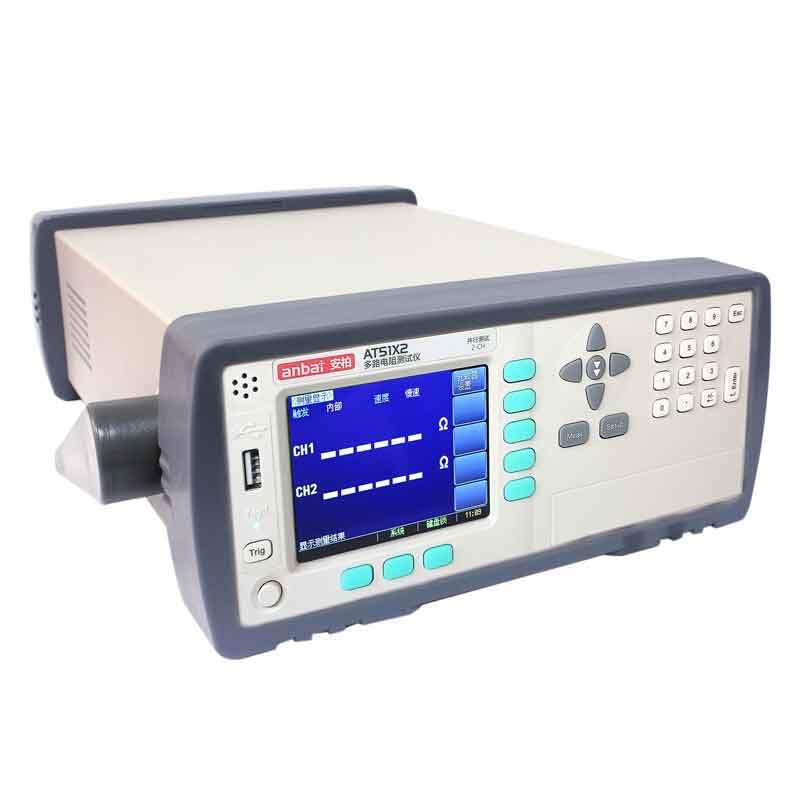

AT51X2 Multichannel Resistance Tester Range 1μΩ~300KΩ,A aximum of 30,000 Digits can be Displayed

AT51X2/X8 is a wide range, multi-channel resistance parallel tester designed for parallel testing of multi-channel resistance. And each channel can be set up a separate comparator. The AT51X2/X8 is controlled by an ARM microprocessor. True color 3.5 "liquid crystal can display multiple resistance values at the same time, can test 1μΩ ~ 300kΩ resistance, display 30,000 numbers. The instrument is used in automation equipment, and can output multiple OK/NG signals using RS232C and HANDLER interfaces to improve the production automation test capability

• AT51X2 is a newly designed multi-channel resistance tester with high precision, wide range and parallel measurement, which can test two resistors simultaneously. 3.5 "LCD,Can display 2 resistance values at the same time, each channel can be set separately comparator, test range 1μΩ ~ 300KΩ maximum display 30,000 numbers. Apply to oneself
• Dynamic equipment can use RS232C and HANDLER interface to output GD/NG signals to improve production automation testing capabilities!
• Signal source:Maximum current :<1A.Test speed:30ms/ channel (manual range)

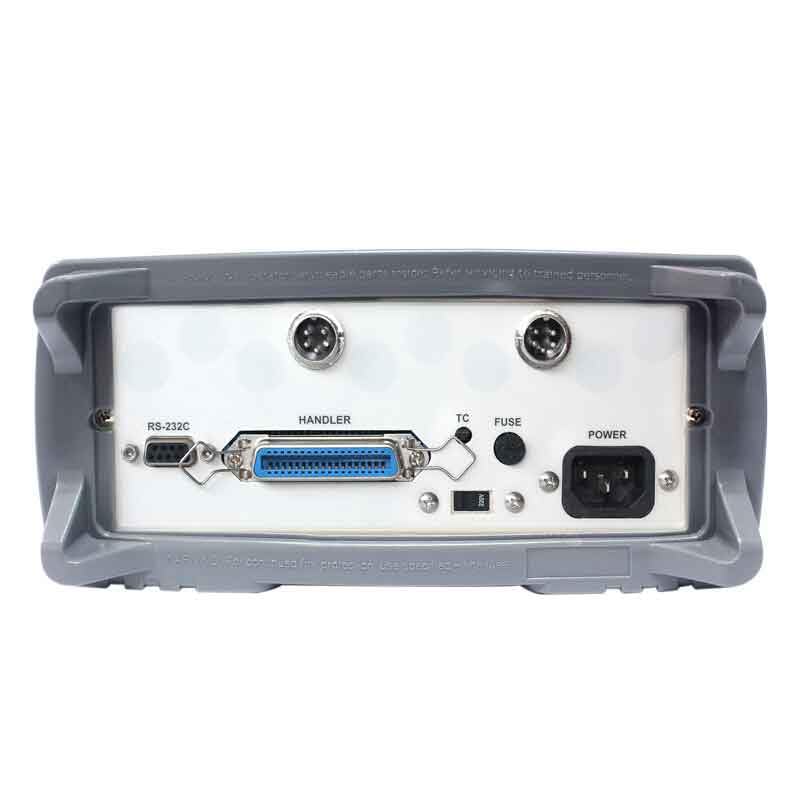

• Trigger mode:Internal trigger, external trigger, manual trigger.Standard interface:RS-232C interface (SCPI instruction set), HANDLER(PLC interface)USB interface.
• Test terminal:Each route has four shielded ends (including two detecting ends and two driving ends).Display:3.5-inch LCD display, multiple resistors display simultaneously
