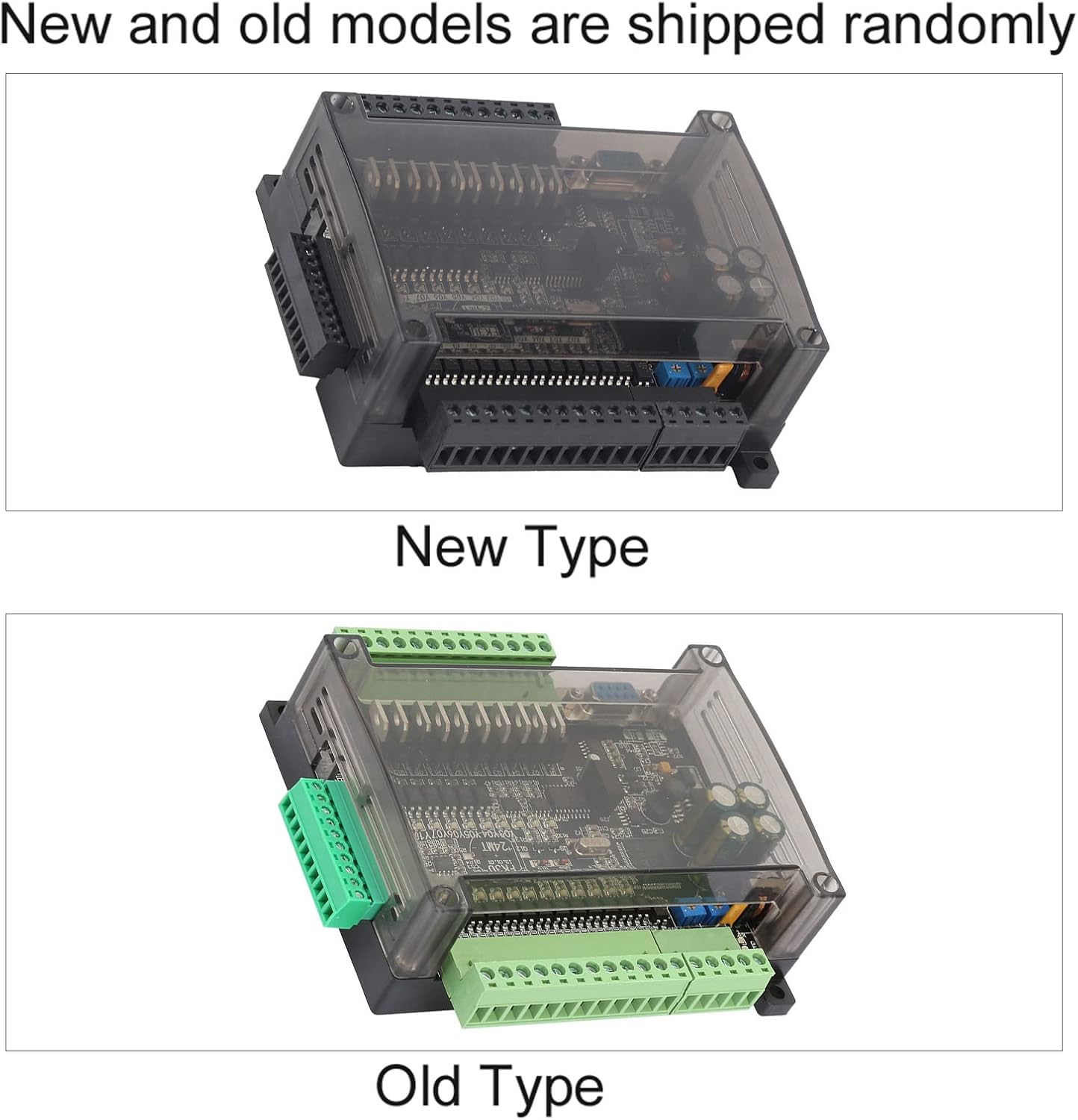

24V 24MT PLC Controller with 6 Analog Input, 32 - Bit MCU, 14 Input 10 Transistor Output Board, Industrial Control Board Compatible with FX3U for Automation Systems

Features:Writing applications in ladder language support GX-Develoer, GX-WORK2. Support for human-machine interface links, the application is exactly the same as FX3U. Support ladder programming, download, monitor. The programming port is a port for program download and communication with the human machine interface. This PLC adopts industrial-grade 32-bit MCU with strong anti-interference, and its running speed far exceeds the original FX3U. This PLC transmission baud rate is 38400. 14-point input and 10-transistor output of the board. Y0-Y3 transistor can output up to 100K pulse. Y4-Y7 transistor can output up to 12K pulse. Y0-Y10 can also be used for ordinary output, which can drive stepping, solenoid valve, cylinder and other DC 24V load. The board is powered by DC 24V. Do not input AC or 220V voltage. Specification:Baud Rate:38400Power Source:24VDCInput power DC 24V Number of steps 8000 steps; 2 communication ports: 1 RS232 (DB9 serial communication port is FX3u protocol 38400, 7, E, 1; 1 RS485 (485 option) (communication protocol can be set D8120) Input point X component XO-X27, DC24 input, active low. X0-5 is the high-speed counting input port (12KHZ) Input point Y component YO-Y3 is the transistor output, the transistor output current is 500mA, plus the freewheeling diode can reach 4A; YO-Y3 is 4 channel 100K pulse output, the output current is 500mA, plus the freewheeling diode can reach 4A.; Y4~Y11 is the transistor common output Can directly drive 24V3A load Analog input 6 analog inputs, 12-bit accuracy, (3 voltages 0-10V, 3 currents 0-20MA); read analog with RD3A instructions Analog output 2 analog outputs, 12-bit accuracy, output voltage: 0-10V. Output analog voltage with WR3A command Intermediate relay M MO-M3071, the power-down storage range can be set to MO-M1023, the default M500-M1023 Step point S S0-1023, the power-down storage

• High-Performance 32-Bit MCU: This 24V 24MT PLC controller uses an industrial-grade 32-bit microcontroller unit that delivers significantly processing speed and stronger anti-interference capability than the original FX3U, ensuring stable operation in demanding automation environments.
• Full FX3U Compatibility: The PLC board supports ladder logic programming via GX Developer and GX WORK2, and works seamlessly with human-machine interfaces just like the FX3U, making it easy to integrate into existing control systems without retraining or redesign.
• Versatile Industrial Applications: Designed for engineers and technicians in manufacturing, packaging, and process control, this PLC controller handles tasks ranging from conveyor control to sensor monitoring thanks to its 14 digital inputs and 10 transistor outputs.
• Robust Industrial Design: Built with high-quality electronic components and a solid PCB layout, this PLC board is engineered for long-term reliability in harsh industrial settings, resisting electrical noise, temperature fluctuations, and continuous operation stress.
• Complete I/O Configuration: The 24MT PLC controller features 14 digital inputs, 10 transistor outputs, and 6 analog inputs in a compact form factor, providing flexible connectivity for sensors, actuators, and other field devices in automated machinery setups.
